Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom

Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom
Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom

Large Image :  Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom

Product Details:
Place of Origin: China
Brand Name: RIFA
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $55,000.00/sets 1-4 sets
Packaging Details: wooden case package
Delivery Time: 30 days
Supply Ability: 100 Set/Sets per Month
Detailed Product Description
Applicable Industries: Manufacturing Plant Showroom Location: Italy, India, Thailand, Kenya
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2022 Warranty Of Core Components: 6 Months
Core Components: PLC, Motor, Pump Condition: New
Type: Rapier Loom Application: Home Textile Fabric, Garment Fabric
Production Capacity: 98% Weight: 3000 KG
Power: 7.5KW Warranty: 1 Year
Key Selling Points: Dobby& Jacquard Function Reed Width: 170-380cm
Yarn Range: Cotton;slub;worsted;filament Weaving Speed: 450-650rpm
Insertion Rate: 1350m/min Weft: 4-8color,electronic Selector/step Motor
Weft Cutter: Mechanical Shedding Type: Jacquard;electronic Dobby;positive Cam Motion
Pick Density Range: 2-20 Picks/cm Port: Shanghai
High Light:

jacquard automatic loom machine

,

water jet loom fabric

,

dobby fabric machine

Automatic Dobby Jacquard Rapier Loom Weaving Machine Textile Machinery Exporter
Brief Introduction

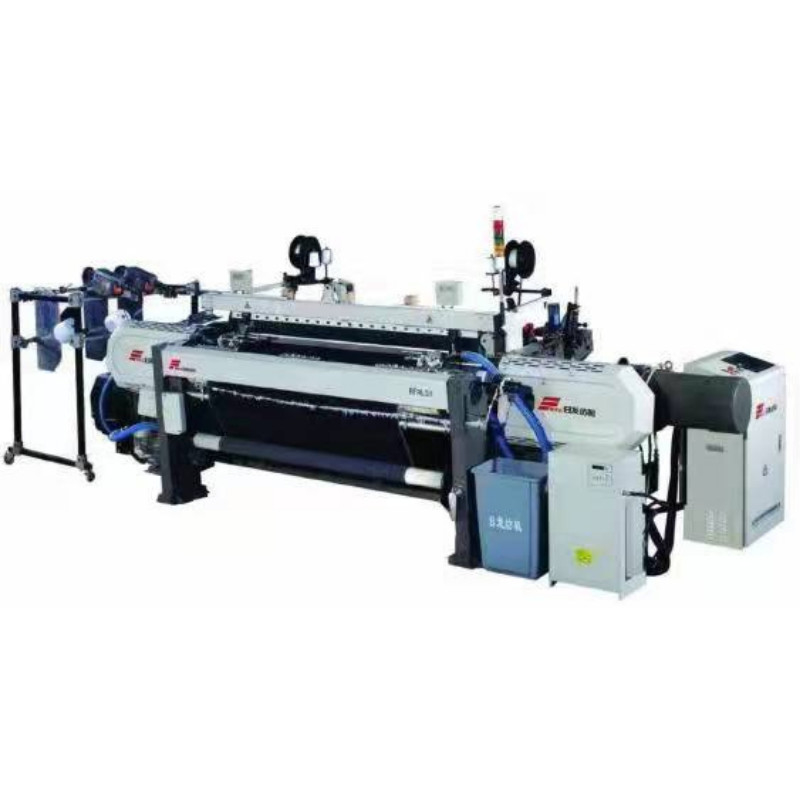

Product features: [extensive weaving, efficient output] RFRL31 is a series of high-speed rapier looms with a wide range of applications, with a maximum weft insertion rate of 1350m / min; The reed width range is 170 ~ 380cm; It can weave various types of products: cotton fabrics, denim, fine / woolen fabrics, rayon, synthetic silk, silk fabrics, corduroy, woolen fabrics, all cotton and blended fabrics for interior decoration, linen fabrics, light and medium thick industrial filter fabrics, glass fibers and other fabrics.
[new energy-saving and efficient power] RFRL31 is directly driven by super starting motor, cancels the main transmission clutch and belt, and has a strong and efficient direct transmission chain, which greatly reduces energy consumption, failure rate and maintenance cost.
[digital automatic control] Apply multi-core and multi bus control technology to fully realize digital control. High performance CPU microprocessor manages and monitors all electronic control units to realize a variety of automation functions: automatic compensation of weaving opening, automatic search of weaving opening, automatic adjustment of tension, automatic control of weaving edge twisting time, automatic switching of weft storage, empty weft beating, network monitoring, fault self diagnosis, etc.
[quick and convenient operation and maintenance] User friendly operation interface and USB interface can set and adjust various process parameters and process programming in real time.
[advanced electronic speed regulation system] The loom speed can be set arbitrarily in the operation interface, with wide speed regulation range, fast start, accurate positioning and braking, which can realize stepless speed regulation and automatic speed change in weaving. Effectively reduce yarn breakage and driving marks, and meet the needs of different kinds of yarns and fabrics.
[electronic dobby · jacquard opening device] The electronic dobby machine with suitable high speed can drive up to 20 heald frames. It is conducive to high-speed weaving, accurate and reliable opening design. The high-speed jacquard loom using rfrl31 advanced modular platform adopts reinforced transmission mechanism to realize high-power and super torque transmission.
[no guide hook technology] Driven by "space crank connecting rod", it has better acceleration curve and speed curve, and the weft handover is accurate and stable. Weft insertion without guide hook can avoid any damage to the yarn, especially suitable for the weaving of high-grade and high-density fabrics.
[electronic hemming • electronic weft selection device] Driven by special angle motor or stepping motor, the time or angle can be set separately from the control panel to accurately control the cross action of hank yarn and the action of each weft selection finger, effectively control weft drafting and stabilize weft tension.
[electronic let off • electronic coiling system] The advanced electronic servo control is adopted. The warp tension is stored and sensed through the tension sensor. According to the set weft density and tension, the CPU carries out comprehensive processing to keep the let off / take-up accurately synchronized with the loom and eliminate the thin and dense road rungs.
[centralized lubrication system · water cooling and heat dissipation device] Microcomputer control technology is adopted to carry out forced spray lubrication for key parts of high-speed operation, improve the lubrication conditions of loom parts, reduce wear, prolong service life and fully ensure the high-speed operation of loom. The system is equipped with micro oil filtering device to remove all impurities. The sensitive pressure sensor and control display device can monitor the operation of the system at any time to ensure that the loom works under good lubrication. The loom can be equipped with water cooling device to reduce the temperature rise of the whole machine and improve the use effect of the whole machine.
[reinforced rear beam] Strengthen the swing rear beam to effectively balance the change of warp tension in the weaving process. Fabrics with different tension are equipped with different rear beam structures.
Product Specification & Advantages
Machine Parameters



















Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom 0
Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom 1
Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom 2
Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom 3
Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom 4
Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom 5
Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom 6
Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom 7
Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom 8
Fabric Water Jet Loom Dobby Machine Textile Rapier Jacquard Automatic Loom 9
