| Product Name: | Warp Kinttting Machine | Needle: | Compound Needle |
|---|---|---|---|
| Guage: | E22、E24、E28、E32、E36 | Working Width: | 134”（3403）154”（3911）186”（4724）218”（5537）238”（6045）248”（6299）268”（6807）280”（7112）290”（7366） |
| No.of Guide Bars: | 2 | Total Machine Power(KW): | 18KW |
1 knitting components
Applying carbon fiber material on needle bed makes machine be capable in variable temperature,and more energy saving, ensures the stable operation on high speed.
2 knitting elements
By optimizing the movement of knitting elements, machine gets good performance on driving, thus satisfying all kinds of knitting requires and at the same time being high efficiency and low consumption.
3 crank connecting link component
Advanced crank lever components and motion features effectively reduce the acceleration and inertia of the movement making it practice on high speed operation.
4 united guide bar frame
Newly designed united guide bar frame strengthens the stiffness of kinds of ball guiding axis, thus ensures the reliable movements to be more stable and precise.
5 yarn tension adjustment device
Intelligentize tension device makes it more stable on tension, convenient on operation,widely used in kinds of fields.
Machine Specification

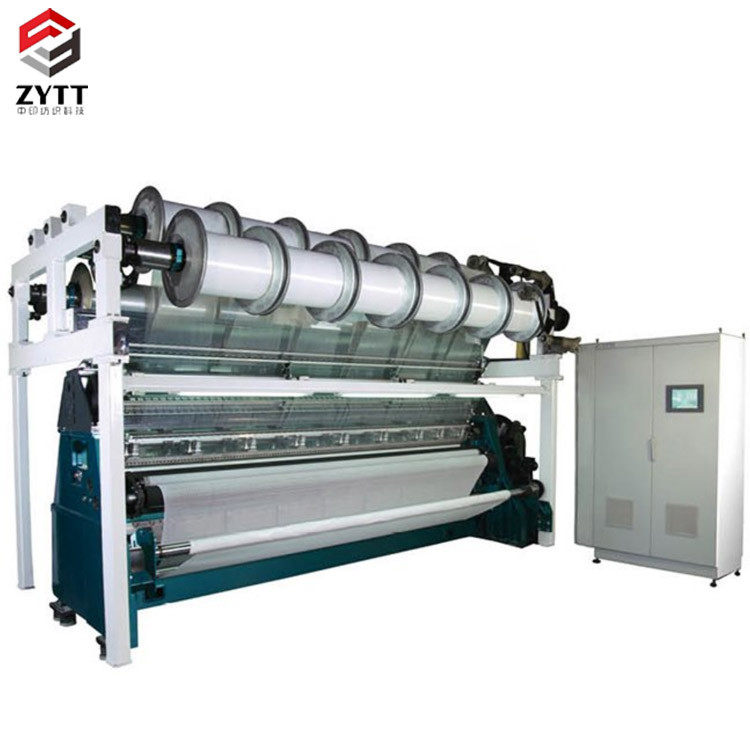

| Machine type | ZYKS-2 | |
| Needle | Compound Needle | |
| Guage | E22,E24,E28,E32,E36 | |
| Working Width | 134”(3403)154”(3911)186”(4724)218”(5537)238”(6045)248”(6299)268”(6807)280”(7112)290”(7366) | |
| No.of guide bars | 2 | |
| Max.knitting speed(rpm) | 2700 | |
| Pattern drive device | Pattern cams or EL device with suitable trans transmission gear ratio | |
| Let-off device | EBC let-off system | |
| Take-up device | Electronic take-up device | |
| Max.fabric batching diameter(mm) | Φ800 | |

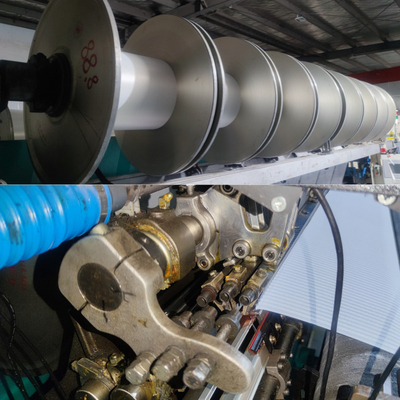

| Dia.of sectional beam(mm) | Diameter of beam shaft:φ152 sectional beam:φ762*535(φ30”*21) Beam size φ1067*535(φ42”*21)is optional on GB1 for ZYKS series | |
| Total machine power(KW) | 18 | |
| Application Fabric | Smooth, elastic and inelastic fabrics (sportswear, swimwear, lingerie, mosquito nets, coated fabrics and advertising fabrics, etc.) | |
|
Machine Introduction |
The machine uses various of fibers such as polyester, polyamide, acrylic, spandex, textured filament yarns. blended yarns to knit plain fabrics, stereo fabrics, elastic fabrics and kinds of pile fabrics which could be made into garments,home textile fabrics and industrial-using fabrics after finishing process. |
|
