Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Manufacturing Plant | Condition: | New |
|---|---|---|---|
| Product Type: | Other, Blanket | Type: | RASCHEL |
| Production Capacity: | 98% | Power: | 5500 W |
| Knitting Style: | Warp | Knitting Method: | Double |
| Computerized: | Yes | Weight: | 12000 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Gauge: | Other, 16 GG, 18GG | Knitting Width: | 138inch |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Name: | Warp Knitting Machine |
| Function: | Automatic | Suitable For: | All Fabrics |

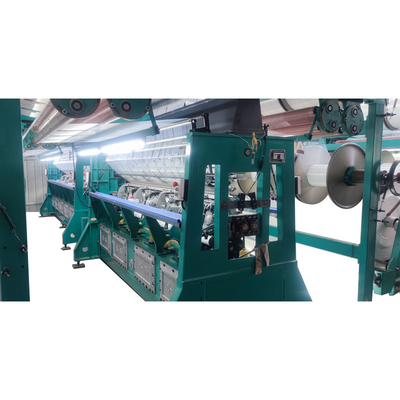

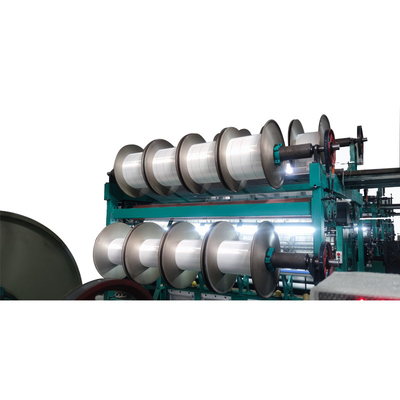

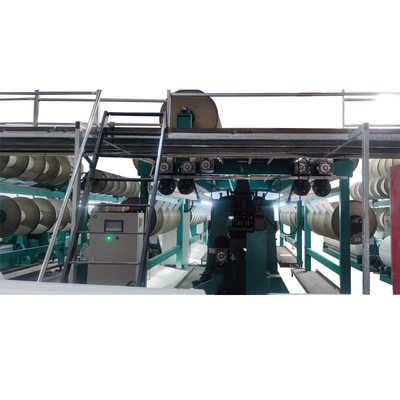

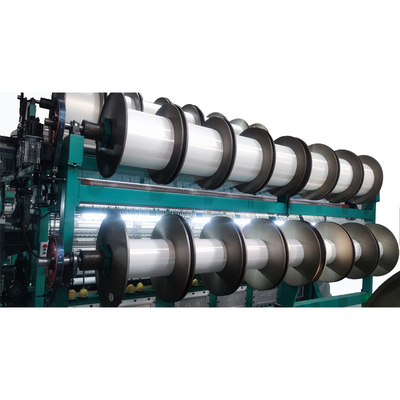

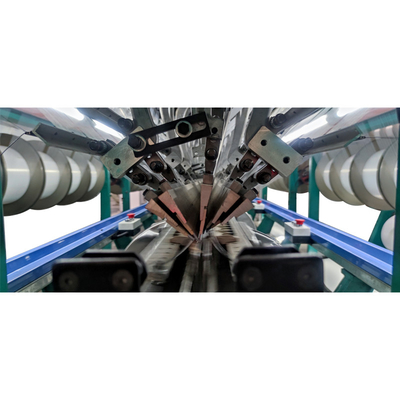

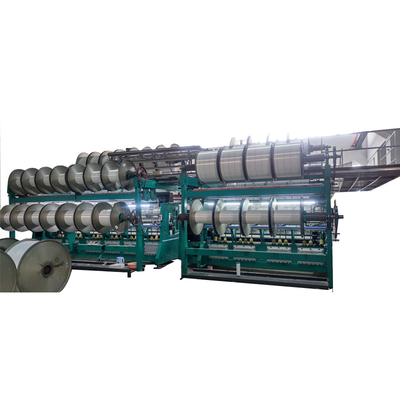

| Product Name: | Textile Fabric Double Needle Bar Raschel Machine | Fabric Type: | Blankets |
| Machine Function: | Improve Fabric | Application: | Textile Industry |
| Feature: | High Efficiency | Keyword: | Raschel Machine |
| Number Of Bars: | 5,6,7 | Port: | Ningbo Qingdao Shanghai |
|
Gauge
|
|
E22,E24,E26,E28
|
|
||
|
Working width
|
|
44",77",110",138"
|
|
||
|
Speed
|
|
50-550RPM(not included special materials and processes
|
|
||
|
Needle Type
|
|
Latch needle block,Individuual latch needle
|
|
||
|
Nunber of bars
|
|
5 ground bars,1separated jacquard bar
|
|
||
|
Distance between knocking-over bar
|
|
1-12mm
|
|
||
|
Pattern drice
|
|
Pattern drice
|
|
||
|
Take-up
|
|
Electronic take-up
|
|
||
|
Batching
|
|
Mechanical/Electrical batching(1270mm)
|
|
||
|
Yarn let-off
|
|
EBC,EBA
|
|
||
|
Beams
|
|
21"-30"
|
|
||
|
Main power
|
|
3KW-5.5kw(according to working width
|
|
||
