Double Needle Raschel Warp Knitting Machine 12KW For Blanket Fabric 50mm

Double Needle Raschel Warp Knitting Machine 12KW For Blanket Fabric 50mm
Double Needle Raschel Warp Knitting Machine 12KW For Blanket Fabric 50mm Double Needle Raschel Warp Knitting Machine 12KW For Blanket Fabric 50mm Double Needle Raschel Warp Knitting Machine 12KW For Blanket Fabric 50mm Double Needle Raschel Warp Knitting Machine 12KW For Blanket Fabric 50mm

Large Image :  Double Needle Raschel Warp Knitting Machine 12KW For Blanket Fabric 50mm

Product Details:
Place of Origin: Jiangsu, China
Brand Name: ZYTT
Certification: CE
Model Number: ZY-288
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $30000-35000/sets >=1 sets
Packaging Details: Container
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: Warp Kinttting Machine Warranty Of Core Components: 1 Year
Core Components: Engine Production Capacity: 99%
Weight: 8000 KG Power: 12KW
High Light:

Warp Knitting Machine For Blanket Fabric

,

Warp Knitting Machine 12KW

,

50mm Warp Knitting Machine

Textile Technology Double Needle Bar Warp Knitting Raschel Machine​
Machine Specification
Key Word
Blanket Raschel Machine
Needle type
Latch Needle
Gauge
E16 E18 E22
Number of bars
5 bars
Distance between knocking-over bars
10-50mm
Working width
90” 100” 100” 110” 138”
Max speed
800rmp

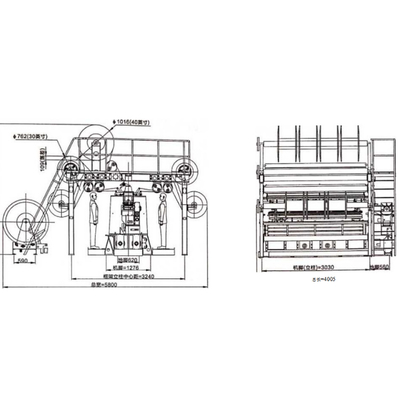

Machine Model
Dimension
LXWXH
Floor Area
(m²)
Weight(Kg)
Motor Power
(Kw)
Speed
(row/minute)
Maine Motor
Slow moving/
Winding Motor
ZY-288-90“
4000x6050x3300
24.2
8000
4
0.75
600-800
ZY-288-100“
25.41
8500
4
0.75
600-800
ZY-288-110“
5000x6050x3300
30.25
9500
4
0.75
600-800
ZY-288-138“
6500x6050x3300
39.33
12000
6
0.75
550-700



Double Needle Raschel Warp Knitting Machine 12KW For Blanket Fabric 50mm 0

Double Needle Raschel Warp Knitting Machine 12KW For Blanket Fabric 50mm 1

  Wuxi zhongyin textile technology company Ltd is located in the beautiful city-wuxi, china high-tech

industrial zone, very famous for textile machinery.

  Our Company founded in 2012, we have more than 10years export experience on textile machinery

business. We have presence in Asia,United States,and Europe .

  Our competitive advantage lies in ourability to create distinguished solutions for our customers.
If you have any query/feedback/comments, please feel free to reach out to us using the form below
and we'll respond as soon as we can.
  Main Products: Warping Machine, Warp Knitting Machine, Textile Finishing Machine, Textile Machinery,
Weaving Machine for Blanket.
Double Needle Raschel Warp Knitting Machine 12KW For Blanket Fabric 50mm 2Double Needle Raschel Warp Knitting Machine 12KW For Blanket Fabric 50mm 3

Double Needle Raschel Warp Knitting Machine 12KW For Blanket Fabric 50mm 4
Q: Products Price and Discount.
A: We Support Customization. Pls Free to Tell Us Machiner Details You Wanted. You Will Get Our Reply In 24 Hours.

Q: Delivery Time.
A: Normally 30 Days After Deposit. If The Machine You Need Is In Stock, We Can Ship It Shortly.

Q: Machine Warranty.
A: One Year. For Any Spare Part, The Customer Can Purchase from Us for Life.

Q: Logistics Cost.
A: The Freight Depends on Weight, Packing Size, And Your Country Or Region, etc.

Q: After Sales Service.
A: Online Service and We Offer Factory Trainted Servicemen for Machine Start Upoperator /maintenance Training and Repair Service.

Q: Choose Mechanical Equipment.
A: Our Professional Team Will Give You The Suggestion as You Tell Us What Kind of Prodct You Need To Do And The Required Specification.
