| Product Name: | Flat Knitting Machine | Product Type: | Collar |
|---|---|---|---|
| Type: | Flat | Knitting System: | Double |
| Power: | 1 KW | Weaving Width: | 36--100inches |
| Guage: | 3.5--16G | ||
| High Light: | Jacquard Making Flat Knitting Machine,100inches Flat Knitting Machine,Computerized 1KW Flat Knitting Machine |
||
Double system computerized flat knitting machine adopts digital technology,
which can realize transfer,tuck, pointelle,intarsia,jacquard,double jersey plain,
apparent shape,hidden shape and other regular patterns. Before knitting
it can automatically scan the knitting documents and select the system suitable
for the pattern,so as to realize the function of fast head rotation,high speed
and high efficiency.

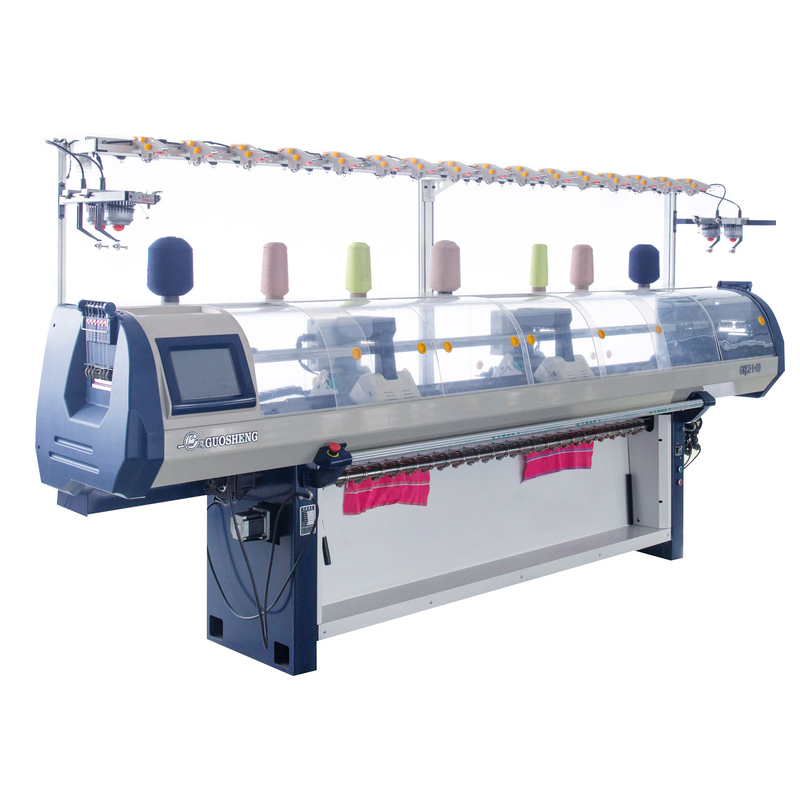

| Model | ZY-2-52 Flat Knitting Machine |
| Gauge | 3G, 3.5G, 3-5-7G, 5G, 6G, 7G, 8G, 9G,10G, 12G,13G,15G |
| Knitting System | Double System, Single Carriage |
| Knitting Width | 44Inch,52Inch, 60Inch, 80Inch, 100Inch |
| Knitting Function | Tranfer; tuck, miss, jacquard, intarsia, hide or apparent shaping. |
| Stitch Density | Stitch system controlled by stepping motor; 32 section stitch selectable, adjustable scope supported by subdivision technology:0-650 |
| Racking | ControLLed by AC servo motor, racking within 2 inches and with fine adjustiing function. |
| Drive System | Synchronous belt drive, AC servo system. |
| Needle Selection | Controlled by computer, electric magnet needle choose system with high efficiency |
| Comb Device | Choose close U type compose needle hook.this special compose hook reliable to pick up yarn or release |
| Yarn Carrier | 2x8 yarn carriers on each side of 4 guide rails, shiftable on any needle position |
| Take Down Roller | Programmed instruction controlled by stepping motor; 32 section Levels selection adjustable area: 0-100 |
| Sinker System | Assist knitting, have various results of shaping and stop. |
| Protection System | The machine will automatically alarm if yam breaking, float yarn, rewind.end of knitting, fail of racking, needle breakage and error programming occur ect. |
| Control System | Speed machine head return, 7 inches touch screen system, USB memery, time counting, visual interface control, maintenance history, easily system update. |
| Power | 220V/380V optional, single-phase or three-phase;Automatic memory and recovery function for power failure. |
